IPC-HDBW5220E(EOL)
Download a Specification Sheet | Download a Manual

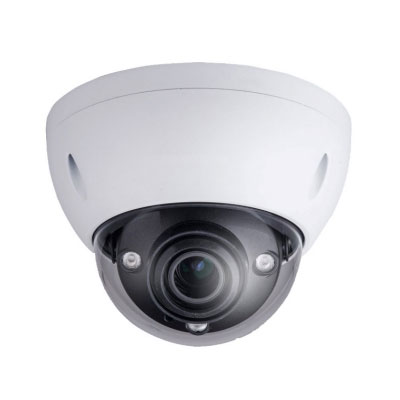

Introducing the IPC-HDBW5220E-Z 1080p IR-illuminated, IP67 camera. These plug-n-play IK10-rated vandal-resistant domes require no additional power source when using NVRs with a built-in PoE switch. The IPC-HDBW5220E-Z makes high definition IP video surveillance more cost effective and affordable, offering the perfect economical and flexible solution for small and medium-sized businesses.
- Features
- Specifications
- Accessories
- Download
-
> 1/2.8” 2 Megapixel Progressive Scan CMOS
> H.264 and MJPEG Triple-stream Encoding
> 25/30 fps @ 1080p (1920x1080)
> DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
> Built-in 1/1 Alarm In/Out
> Supports Corridor Mode
> 2.7 to 12mm Motorized Lens
> ONVIF, PSIA, CGI Compatibility
> Max IR LED Length 164 feet (50 m)
> Smart Detection: Tripwire, Intrusion, Scene Change, Face Detect
> Multi remote monitoring options: Web Browser, ADT VideoView (PC only), ADT VideoView mobile (iPhone, Android) and VideoView HD (iPad) free of chargeOrdering Information
Part Number
Description
IPC-HDBW5220E-Z-ADT
2 MP Full HD Network Dome Camera, 2.7 ~12mm motorized Lens
Dimensions
Camera Matrix
Model
IPC-HDBW5220E-Z
Image Sensor
1/2.8” 2MP Exmor R CMOS
Lens
2.7~12mm/F1.4
MotorizedAngle of View
H: 99°~34°
Min. Illumination
0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)
Day/Night
ICR
WDR
DWDR
Max IR.Distance
50m
Video Compression
H.264/MJPEG
Max. Resolution
1080P(1920x1080)
Frame Rate
30fps@1080P
Multi-streaming
3 streams
Pan/Tilt/Zoom
--
Preset Speed
--
Intelligent Video
Tripwire, Intrusion, Scene change, Face detection
Compatibility
ONVIF(2.4),PSIA,CGI
Audio In/Out
1/1
Memory Slot
Micro SD, Max 128GB
Alarm In/Out
1/1
Ingress Protection
IP67,IK10
Working Tempurature
-30°C~+60°C
Power
DC12V(AC24V optional), PoE (802.3af),10W
