IPC-HDBW4220E(EOL)
Download a Specification Sheet | Download a Manual

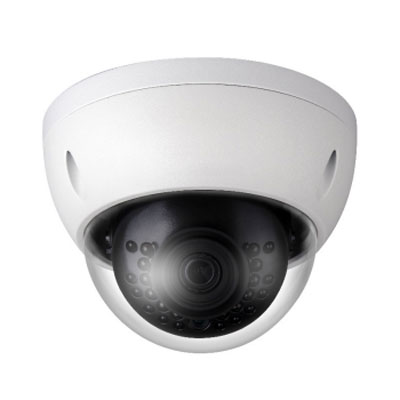

Introducing the IPC-HDBW4220E, ADT’s 2 megapixel, full HD, mini dome style camera. These quick, easy plug-n-play cameras require no additional power source when using NVRs with a built-in PoE switch. These cameras feature IP67 ingress protection and IK10 vandal resistance ratings.
Making high definition IP video surveillance more cost effective and affordable, the IPC-HDBW4220E cameras offer the perfect economical and flexible solution for small and medium-sized businesses.
- Features
- Specifications
- Accessories
- Download
-
> 1/2.8” 2 Megapixel Progressive Scan CMOS
> H.264 and MJPEG Dual-stream Encoding
> 25/30 fps @ 1080p (1920x1080)
> DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
> ONVIF PSIA CGI Compatibility
> Max IR LED Length 98 feet (30m)
> 3.6mm Fixed Lens
> Power over Ethernet
> Corridor Mode Support
> IP67 Ingress Protection Rating
> IK10 Vandal Resistant
> Smart Detection: Tripwire, Intrusion, Scene Change, Face Detect
> Multi remote monitoring options: Web Browser, ADT VideoView (PC only), ADT VideoView mobile (iPhone, Android) and VideoView HD (iPad) free of chargeOrdering Information
Part Number
Description
IPC-HDBW4220E-ADT36
2.0 MP HD IR Network Dome Camera, 3.6mm
Fixed Lens

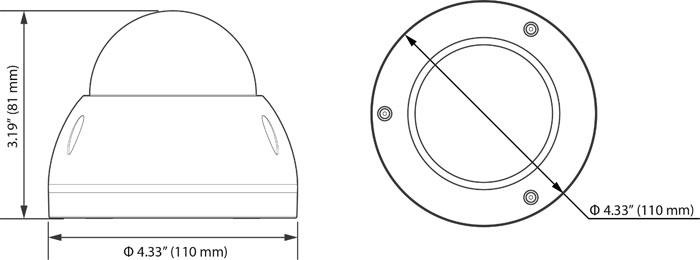

Dimensions
Camera Matrix
Model
IPC-HDBW4220E
Image Sensor
1/2.8” 2MP Exmor R CMOS
Lens
3.6mm/F2.0, 2.8mm/F2.0, 6mmF2.0 optional Manual
Angle of View
H: 83.5°/106°/55°
Min. Illumination
0.01Lux/F2.0 (Color),
0Lux/F2.0(IR on)Day/Night
ICR
WDR
DWDR
Max IR.Distance
30m
Video Compression
H.264/ MJPEG
Max. Resolution
1080P(1920×1080)/
Frame Rate
30fps@1080P
Multi-streaming
3 streams
Pan/Tilt/Zoom
--
Preset Speed
--
Intelligent Video
Tripwire, Intrusion, Scene change, Face detect
Compatibility
ONVIF(2.4),PSIA,CGI
Audio In/Out
--
Memory Slot
--
Alarm In/Out
--
Ingress Protection
IP67,IK10
Working Tempurature
-30°C~+60°C
Power
DC12V, PoE (802.3af),4W
