IPC-HDBW5231E-Z（EOL）
Download a Specification Sheet | Download a Manual

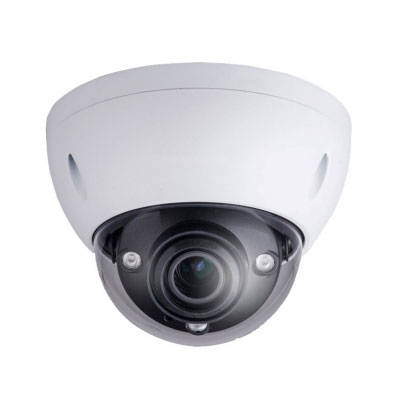

2MP WDR IR Dome Network Camera
- Features
- Specifications
- Accessories
- Download
-
> 1/2.8” 2Megapixel progressive scan Exmor CMOS
> H.265&H.264 triple-stream encoding
> 50/60fps@1080(1920×1080)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~12mm motorized lens
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 50m
> Micro SD memory, IP67, IK10, PoE
-
Camera
Image Sensor
1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H) x 1080(V)
Scanning System
Progressive
Minimum Illumination
0.006Lux/F1.4 (Color); 0Lux/F1.4 (IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 50m (164ft)
IR On/Off Control
Auto/ Manual
IR LEDs
3
Lens
Lens Type
Motorized/ Auto Iris(DC)
Mount Type
Board-in
Focal Length
2.7mm~12mm
Max. Aperture
F1.4
Angle of View
H: 97°~34° , V: 52°~20°
Optical Zoom
4x
Focus Control
Motorized
Close Focus Distance
0.3m
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range
Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Intelligence
IVS (optional)
Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions
Face Detection
Video
Compression
H.265/H.264+/H.264
Streaming Capability
3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream: 1080P (1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 24~9472Kbps
H.265: 14~5632Kbps
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / WDR(120dB)
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detetion
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Electronic Image Stabilization (EIS)
N/A
Smart IR
Support
Defog
N/A
Digital Zoom
16x
Flip
0°/90°/180°/270°
Mirror
Off / On
Privacy Masking
Off / On (4 Area, Rectangle)
Audio
Compression
G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability
ONVIF, PSIA, CGI
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer
IE, Chrome, Firefox, Safari
Smart Phone
IOS, Android
Interface
Video Interface
N/A
Audio Interface
1/1 channel In/Out
RS485
N/A
Alarm
1/1 channel In/Out
Electrical
Power Supply
DC12V, AC24V, PoE(802.3af)(Class 0)
Power Consumption
<12.5W
Environmental
Operating Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Construction
Casing
Metal
Dimensions
Φ159.1mm×117.9mm (6.26”×4.64”)
Net Weight
0.89kg (1.96lb)
Gross Weight
1.13kg (2.49lb)
-
PFA101
PFA138
PFA152
PFB201C
PFB300C
PFB302S
-
Datasheet
IPC-HDBW5231E-Z（EOL） (2017-03-29, English)
