IPC-HFW4120E(EOL)
Download a Specification Sheet | Download a Manual

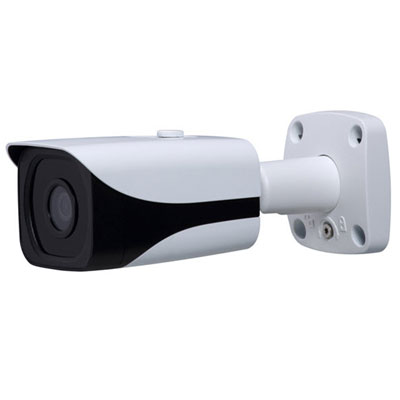

Introducing the IPC-HFW4120E 1.3 megapixel HD, IR-illuminated, IP67-rated camera. These plug-n-play vandal-resistant bullet cameras require no additional power source when using NVRs with a built-in PoE switch. The IPC- HFW4120E makes high definition IP video surveillance more cost effective and affordable, offering the perfect economical and flexible solution for small and medium-sized businesses.
- Features
- Specifications
- Accessories
- Download
-
> 1/3” 1.3 Megapixel Progressive Scan CMOS
> H.264 and MJPEG Triple-stream Encoding
> Max 25/30fps @ 1.3M (1280×960)
> 3.6mm Fixed Lens and 6.0mm Fixed Length Models
> DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
> Supports Corridor Mode
> ONVIF, PSIA, CGI Compatibility
> Max IR LED Length 131 feet (40 m)
> Smart Detection: Tripwire, Intrusion, Scene Change, Face Detect
> Multi remote monitoring options: Web Browser, ADT VideoView (PC only), ADT VideoView mobile (iPhone, Android) and VideoView HD (iPad) free of chargeOrdering Information
Part Number
Description
IPC-HFW4120E-ADT36
1.3 MP HD IR Network Bullet Camera, 3.6mm Fixed Lens
IPC-HFW4120E-ADT60
1.3 MP HD IR Network Bullet Camera, 6.0mm Fixed Lens

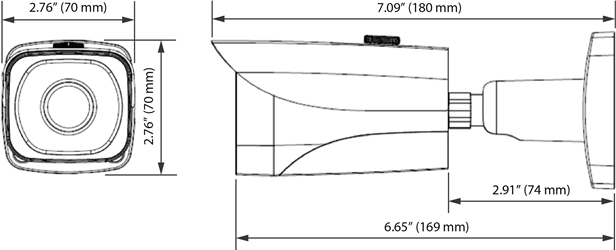

Dimensions
Camera Matrix
Model
IPC-HFW4120E
Image Sensor
1/3” 1.3MP Exmor CMOS
Lens
3.6mm/F2.1, 6mm/F2.0 optional Manual
Angle of View
H:74°(47°)
Min. Illumination
0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)
Day/Night
ICR
WDR
DWDR
Max IR.Distance
40m
Video Compression
H.264/MJPEG
Max. Resolution
1.3M(1280×960)
Frame Rate
30fps@1.3M
Multi-streaming
3 streams
Pan/Tilt/Zoom
--
Preset Speed
--
Intelligent Video
Tripwire, Intrusion, Scene change, Face detection
Compatibility
ONVIF(2.4),PSIA,CGI
Audio In/Out
--
Memory Slot
--
Alarm In/Out
--
Ingress Protection
IP67
Working Tempurature
-30°C~+60°C
Power
DC12V, PoE (802.3af),5.5W
