IPC-HFW4231E-S/IPC-HFW4231E-SE
Download a Specification Sheet | Download a Manual

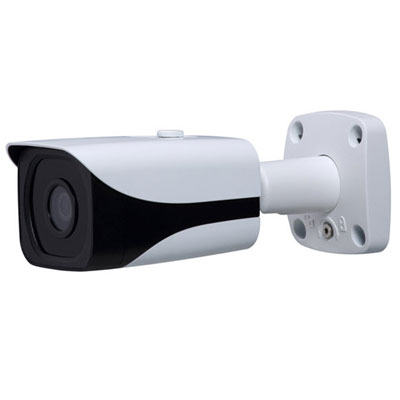

2MP WDR IR Mini Bullet Network Camera
- Features
- Specifications
- Accessories
- Download
-
> 1/2.8” 2Megapixel progressive scan Exmor CMOS
> H. 265&H.264 triple-stream encoding
> 50/60fps@1080P(1920×1080)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (6mm optional)
> Max. IR LEDs Length 40m
> Micro SD Memory,IP67, PoE
-
Camera
Image Sensor
1/2.8” 2Megapixel progressive scan Exmor CMOS
Effective Pixels
1920(H) x 1080(V)
Scanning System
Progressive
Minimum Illumination
0.009Lux/F2.0 (Color), 0Lux/F2.0 (IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 40m (131.2ft)
IR On/Off Control
Auto/ Manual
IR LEDs
2
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
3.6mm (6mm optional)
Max. Aperture
F2.0 (F2.0)
Angle of View
H: 87° (51°), V: 48° (30°)
Optical Zoom
N/A
Focus Control
Fixed
Close Focus Distance
N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range
Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVS (optional)
Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions
Face Detection
Video
Compression
H.265/H.264+/H.264
Streaming Capability
3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream: 1080P (1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 24~9472Kbps
H.265: 14~5632Kbps
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / WDR(120dB)
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detetion
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Electronic Image Stabilization (EIS)
N/A
Smart IR
Support
Defog
N/A
Digital Zoom
16x
Flip
0°/90°/180°/270°
Mirror
Off / On
Privacy Masking
Off / On (4 Area, Rectangle)
Audio
Compression
N/A
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability
ONVIF, PSIA, CGI
Streaming Method
Unicast / Multicast
Max. User Access
10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer
IE, Chrome, Firefox, Safari
Smart Phone
IOS, Android
Interface
Video Interface
N/A
Audio Interface
N/A
RS485
N/A
Alarm
N/A
Electrical
Power Supply
DC12V, PoE (802.3af)(Class 0)
Power Consumption
<6W
Environmental
Operating Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Construction
Casing
Metal
Dimensions
180mm×70mm×70mm (7.09”×2.76”×2.76”)
Net Weight
0.41kg (0.91lb)
Gross Weight
0.53 kg (1.17lb)
-
PFA121
PFA152
-
Datasheet
IPC-HFW4231E-S/IPC-HFW4231E-SE (2017-03-29, English)
