SD32203S-HN(EOL)
Download a Specification Sheet | Download a Manual

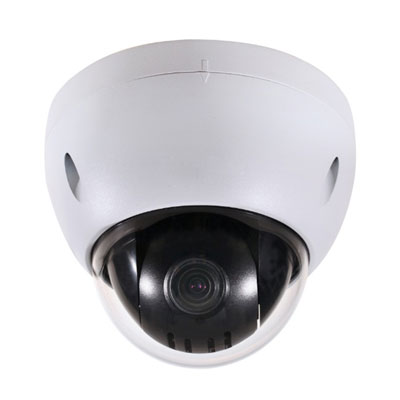

Introducing the SD32203S-HN, ADT’s 1080p, IR-illuminated, IP66 ingress-rated camera. This plug-n-play vandal-resistant PTZ dome requires no additional power source when using NVRs with a built-in PoE switch. The SD32203S-HN makes high definition IP video surveillance more cost effective and affordable, offering the perfect economical and flexible solution for small and medium-sized businesses.
- Features
- Specifications
- Accessories
- Download
-
> 1/2.8” 2 Megapixel Progressive Scan Exmor CMOS
> H.264 and MJPEG Dual-stream Encoding
> Max 25/30fps @1080p Resolution
> 3.0mm ~ 9.0mm (3x ) Optical Zoom Lens
> ONVIF, PSIA, CGC Compatible
> Built-in 2/1 Alarm In/Out
> 3D Intelligent Positioning with ADT PTZ Camera
> Micro SD Memory, IP66, IK10, PoE
> DWDR, Day/Night (ICR), DNR (2D & 3D), Auto Iris, Auto Focus AWB, AGC, BLC
> Multi Remote Monitoring Options: Web Browser, ADT VideoView (PC only), ADT VideoView mobile (iPhone, Android) and VideoView HD (iPad) free of chargeOrdering Information
Part Number
Description
SD32203S-HN-ADT
2 MP Full HD Network Dome Camera, 3 ~ 9mm 3x Optical Zoom Lens

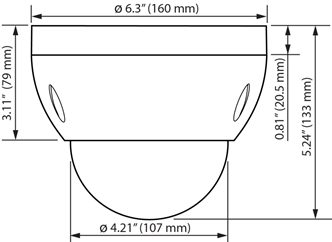

Dimensions
Camera Matrix
Model
SD32203S-HN
Image Sensor
1/2.8” 2MP Exmor CMOS
Lens
3.0~9.0mm(3x Optical zoom)
Angle of View
H: 98.4°~29.7°
Min. Illumination
0.05Lux/F1.6(Color); 0.005Lux/F1.6(B/W)
Day/Night
ICR
WDR
DWDR
Max IR.Distance
--
Video Compression
H.264/MJPEG
Max. Resolution
1080P(1920x1080)
Frame Rate
30fps@1080P,60fps@720P
Multi-streaming
2 streams
Pan/Tilt/Zoom
300 Presets,
Pan: 0°~360° endless
Tilt: 0°~90°, Auto flip 180°Preset Speed
Pan: 240°/s; Tilt: 160°/s
Intelligent Video
--
Compatibility
ONVIF(2.4),PSIA,CGI
Audio In/Out
1/1
Memory Slot
Micro SD, Max 128GB
Alarm In/Out
2/1
Ingress Protection
IP66, IK10
Working Tempurature
-30°C~+60°C
Power
DC12V, PoE (802.3af)
