NVR4204-P/NVR4208-8P-4KS2

• Features
• Specifications
• Accessories
• Download

• > High efficient decoding capability 4/8 channels up to 8MP, viewing and recording
  > Quad codec decoding for H.265 and H.264
  > View up to eight channels simultaneously on HDMI/VGA monitor
  > Max 200Mbps incoming bandwidth
  > View all channels in live and playback mode @ 8MP, 1080p or 720p, full frame rate
  > Two-way audio communication
  > Supports multiple brands of network cameras
  > ONVIF Version 2.4 conformance
  > 3D intelligent positioning with ADT PTZ camera
  > Supports 2 SATA HDDs up to 12TB, 2 USB ports (1 USB3.0)
  > Multi remote monitoring options: Web Browser, ADT VideoView (PC only), ADT VideoView mobile (iPhone, Android) and VideoView HD (iPad) free of charge

  Ordering Information

  SCN	Description
  NVR4204-P-4KS2	4 Channel 1U 4 PoE Network 4K&H.265 Video Recorder with 6 TB HDD
  NVR4208-8P-4KS2	8 Channel 1U 8 PoE Network 4K&H.265 Video Recorder with 6 TB HDD

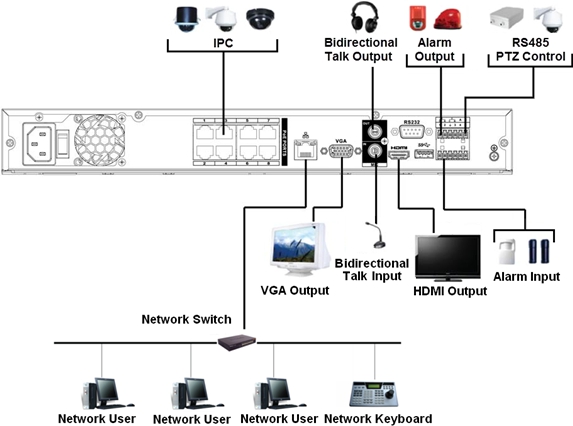

  System Connections



  Model NVR4208-8P-4KS2 shown in above figure

• System
  Main Processor	Quad-Core embedded processor
  Operating System	Embedded Linux
  Video
  Camera Inputs	4 / 8 Channels
  Audio
  Two-way Talk	1 channel input, 1 channel output, RCA
  Monitor Output
  Interface	1 HDMI, 1 VGA
  Resolution	3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
  Display Grids	4 channel model: 1/4; 8 channel model: 1/4/8/9
  On Screen Display	Camera Title, Time/Date, Video Loss, Camera Lock, Motion Detection, Recording
  Recording
  Video Compression	H.265 / H.264
  Resolution	8MP(3840x2160); 6MP(3072x2048); 5MP(2560x1920); 4MP(2688x1520); 3MP(2048x1536); 1080p (1920x1080); 720p (1280x720); D1 (704x576/704x480)
  Record Rate	200 Mbps
  Bit Rate	16 Kbps ~ 20 Mbps Per Channel
  Record Mode	Manual, Schedule (Regular [Continuous], MD, Alarm), Stop
  Record Interval	1~120 min (default: 60 min), Pre-record: 1~ 30 sec, Post-record: 10 ~ 300 sec
  Video Detection and Alarm
  Trigger Events	Recording, PTZ (Tour, Preset), Alarm, Video Push, Email, FTP, Buzzer, Screen Tips
  Video Detection	Motion Detection, MD Zones: 396 (22 x18), Video Loss, Camera Blank
  Alarm Inputs	4 channels
  Relay Outputs	2 channels
  Playback and Backup
  Sync. Playback	4 channel model: 1/4; 8 channel model: 1/4/8
  Search Mode	Time/Date, Alarm, MD and Exact Search (accurate to second), Smart Search
  Playback Functions	Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  Backup Mode	USB Device/Network/ Internal SATA burner
  Network
  Ethernet	RJ-45 port (10/100/1000Mbps)
  PoE Ports	4 ports (IEEE802.3at/af) and 8 ports (IEEE802.3at/af)
  Network Functions	HTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (supports ADT IP cameras, DVR, NVS, etc.)
  Max User Access	128 users
  Smart Phone	iPhone, iPad, Android
  Storage
  Internal HDD	2 SATA ports, up to 12TB
  Auxiliary Interfaces
  USB	2 ports (1 Rear USB3.0, 1 Front USB2.0)
  RS232	N/A
  RS485	N/A
  General
  Power Supply	4 channel model: NVR: 48VDC, 2A 8 channel model: NVR: 100 ~ 240VAC, 50/60 Hz
  Power Consumption	4 channel model: NVR: 9W (without HDD) / PoE: 25.5 W max for single port 8 channel model: NVR: 9.6W (without HDD) / PoE: 25.5 W max for single port
  Environment	14°F ~131°F (–10°C ~ +55°C); 0% ~ 90% RH
  Dimensions	4 channel model: 1U: 14.8 x11.1 x2.2 in (375 x 281.5 x 56 mm), W x H x D 8 channel model: 1U: 14.8 x12.9 x2.1 in (375 x 327.5 x 53 mm), W x H x D
  Weight	4 channel model: 3.5 lb (1.6 kg) without HDD; 8 channel model: 5.7 lb (2.6kg) without HDD

• Datasheet

  NVR4204-P/NVR4208-8P-4KS2 (2017-04-14, English)
