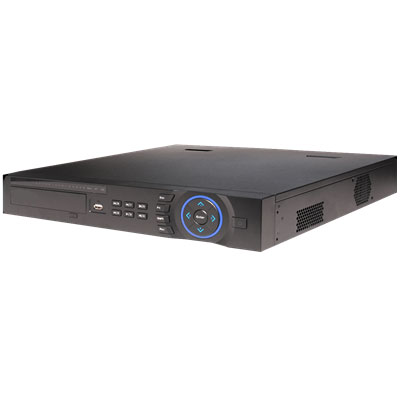

NVR7416-16P(EOL)

• Features
• Specifications
• Accessories
• Download

• > High efficient decoding capability 16 channels up to 1080p, viewing and recording > Dual codec decoding for H.264 and MJPEG
  > View up to 16 channels simultaneously on HDMI/VGA monitor
  > Max 256 Mbps incoming bandwidth
  > View all channels in live and playback mode @ 720p or 1080p, full frame rate.
  > Two-way audio communication
  > Supports multiple brands of network cameras
  > ONVIF Version 2.3 conformance
  > 3D intelligent positioning with ADT PTZ camera
  > Supports 2 SATA HDDs up to 8TB
  > 3 USB ports (1 front, 2 rear), USB 2.0
  > Multi remote monitoring options: Web Browser, ADT VideoView (PC only), ADT VideoView mobile (iPhone, Android) and VideoView HD (iPad) free of charge

  Ordering Information

  SCN	Description
  NVR7416-16P-ADT-4	16 Channel 1.5U 16 PoE Network Video Recorder with 4 TB HDD
  NVR7416-16P-ADT-8	16 Channel 1.5U 16 PoE Network Video Recorder with 8 TB HDD

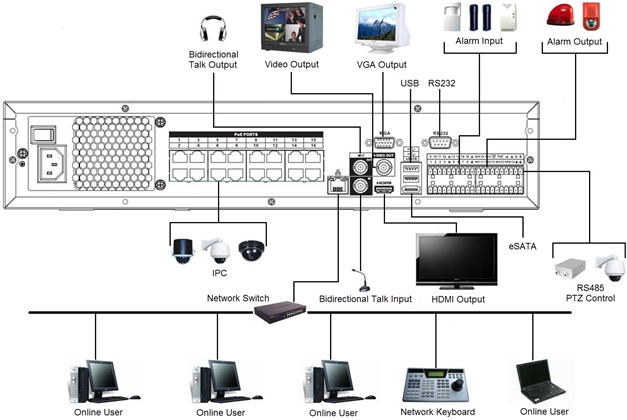

  System Connections



  Model NVR7416-16P shown in above figure

• System
  Main Processor	Dual-Core embedded processor
  Operating System	Embedded Linux
  Video
  Camera Inputs	16 channels
  Audio
  Two-way Talk	1 channel input, 1 channel output, BNC
  Monitor Output
  Interface	1 HDMI, 1 VGA, 1 BNC
  Resolution	1920x1080, 1280x1024, 1280x720, 1024x768
  Display Grids	1/4/8/9/16
  On Screen Display	Camera Title, Time/Date, Video Loss, Camera Lock, Motion Detection, Recording
  Recording
  Video Compression	H.264 / MJPEG
  Resolution	1080p (1920x1080); 720p (1280x720); D1 (704x576/704x480)
  Record Rate	200 Mbps
  Bit Rate	48 ~ 8192 Kbps
  Record Mode	Manual, Schedule (Regular [Continuous], MD, Alarm), Stop
  Record Interval	1~120 min (default: 60 min), Pre-record: 1~ 30 sec, Post-record: 10 ~ 300 sec
  Video Detection and Alarm
  Trigger Events	Recording, PTZ (Tour, Preset), Alarm, Video Push, Email, FTP, Buzzer, Screen Tips
  Video Detection	Motion Detection, MD Zones: 396 (22 x18), Video Loss, Camera Blank
  Alarm Inputs	16 channels
  Relay Outputs	5 channels
  Playback and Backup
  Sync. Playback	1/4/9/16
  Search Mode	Time/Date, Alarm, MD and Exact Search (accurate to second), Smart Search
  Playback Functions	Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  Backup Mode	USB Device/Network/ Internal SATA burner/External eSATA
  Network
  Ethernet	RJ-45 port (10/100/1000Mbps)
  PoE Ports	16 ports (IEEE802.3at)
  Network Functions	HTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (supports ADT IP cameras, DVR, NVS, etc.)
  Max User Access	128 users
  Smart Phone	iPhone, iPad, Android
  Storage
  Internal HDD	4 SATA ports, up to 16TB
  External HDD	eSATA port, up to 16TB
  Auxiliary Interfaces
  USB	3 ports (1 front, 2 rear), USB 2.0
  RS232	1 port, for PC communications and Keyboard
  RS485	1 port, for PTZ control
  General
  Power Supply	100 ~ 240 VAC, 50/60 Hz
  Power Consumption	NVR: 40 W (without HDD) / PoE: 15 W (each)
  Environment	14°F ~131°F (–10°C ~ +55°C); 10% ~ 90% RH
  Dimensions	1.5U: 17.32 x16.02 x 2.76 in (440 x 407 x 70 mm)
  Weight	11 lb (5 kg) without HDD

• Datasheet

  NVR7416-16P(EOL) (2015-09-29, English)
